manufactured with Heat Sealed Polypropylene Co Polymer Monoblaccasing material. Tubular positive plates are made of highly corrosion-resistant special lead alloy and Pasted Negative Plates with high discharge performance to ensure cycling capabilities and also reduce topping-up frequency. Individual cells are fitted with Micro Porous aqua-trap ceramic vent plugs with sealed float, which prevent acid mist coming out from the cells to make it convenient for living room ambience.

Applications
  • UPS Systems
  • Inverters
  • Emergency Lighting
  • Switchgear Operations
  • Solar Photovoltaic & Wind Power
  • UPS for Banks & ATM Counters
  • Communication Networks
Products Features
  • Tubular positive plates
  • Ceramic vent plugs with sealed float
  • Heat sealed polypropylene casing
  • No acid fumes, eco-friendly
  • Reduced topping-up frequency
  • Heavy-duty terminals
  • Abuse resistant

Capacity Weights And Dimensions


Type ah Capacity Dimensions (+/-3) mm Charging (AH) Approx wt.(Kg) +/- 5% Electrolyte Vol.(kg) (Sp.Gr.1.220) Trickle Charging Current in Ma Layout
20 hr 5 hr L W H Initial Normal Dry Filled Min. Mex.
EPT 80 12V 80AH 80 64 410 170 240 4.8 7.2 19 28 7 60 260 L
EPT 100 12V 100AH 100 80 515 215 245 6.0 9.0 23 40 15 80 320 R
EPT 130 12V 130AH 130 104 515 273 285 7.8 11.7 27 52 22 110 420 R

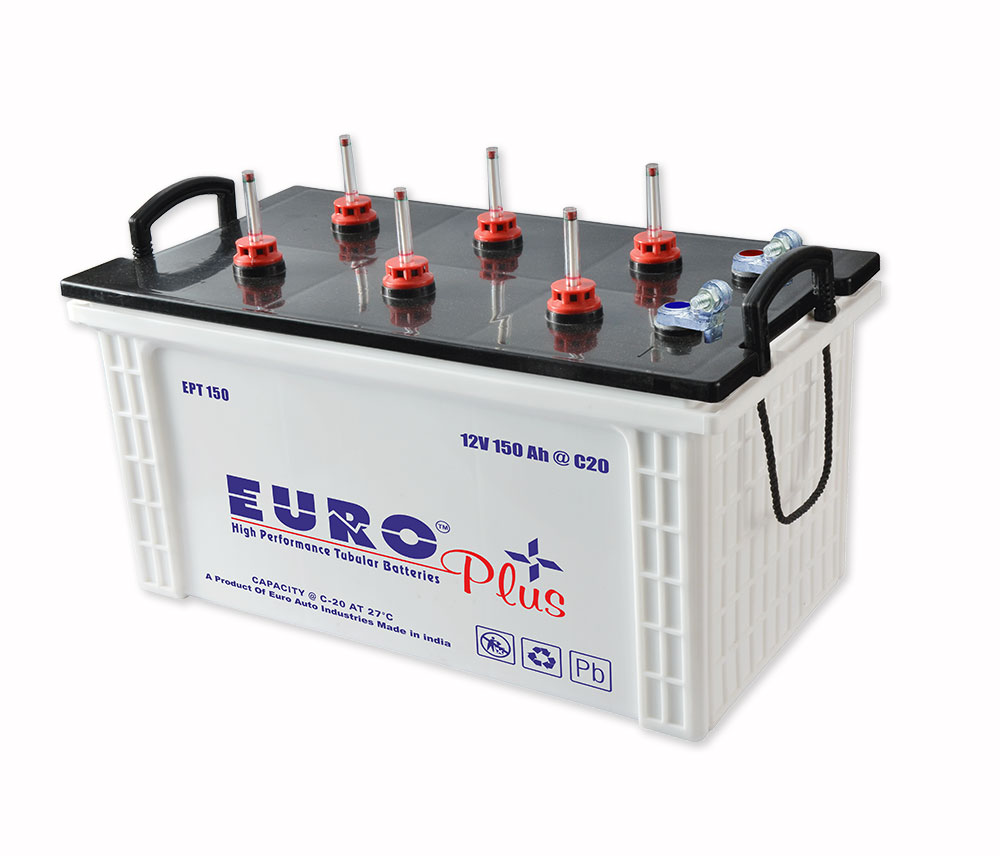

EPT 150 12V 150AH 150 120 515 273 285 9.0 13.5 32 55 20 120 500 R
EPT 180 12V 180AH 180 144 515 273 285 10.8 16.2 36 59 18 144 600 R
EPIT 120 12V 120AH 120 96 505 190 410 7.2 10.8 28 52 22 100 400 R
EPIT 150 12V 150AH 150 120 505 190 410 9.0 13.5 32 56 21 120 500 R
EPIT 180 12V 180AH 180 144 505 190 410 10.8 16.2 36 60 20 150 600 R

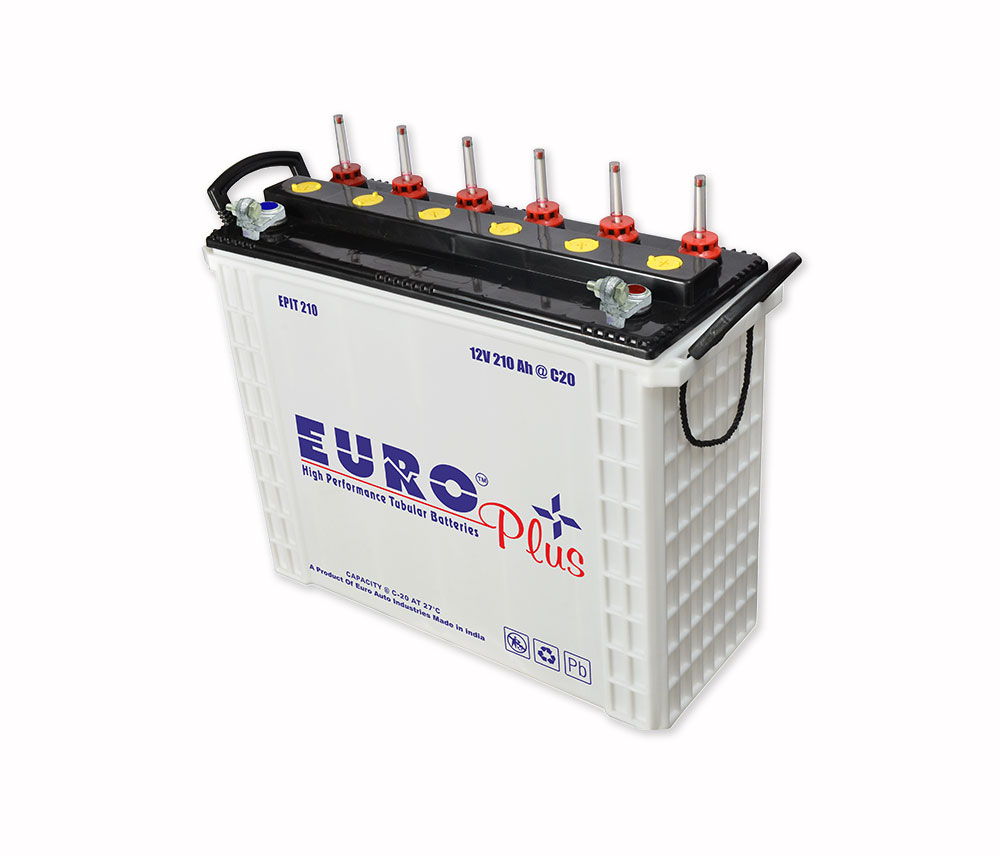

EPIT 210 12V 210AH 210 168 505 190 410 12.6 18.9 40 65 18 170 700 R
